Industrial compressor replacement parts
Custom Compressor Parts
Replacement and custom-manufactured components for industrial compressor repair and overhaul. We support project-specific manufacturing based on available drawings, physical samples or measurement data.
Request a Quote
Actual factory products
Split Labyrinth Seals
Precision-machined split labyrinth seal components for industrial compressor applications.
Designed to restrict gas or lubricating oil leakage through multiple labyrinth sealing passages. Replacement components can be manufactured based on available drawings, physical samples or measurement data, subject to project-specific technical requirements.

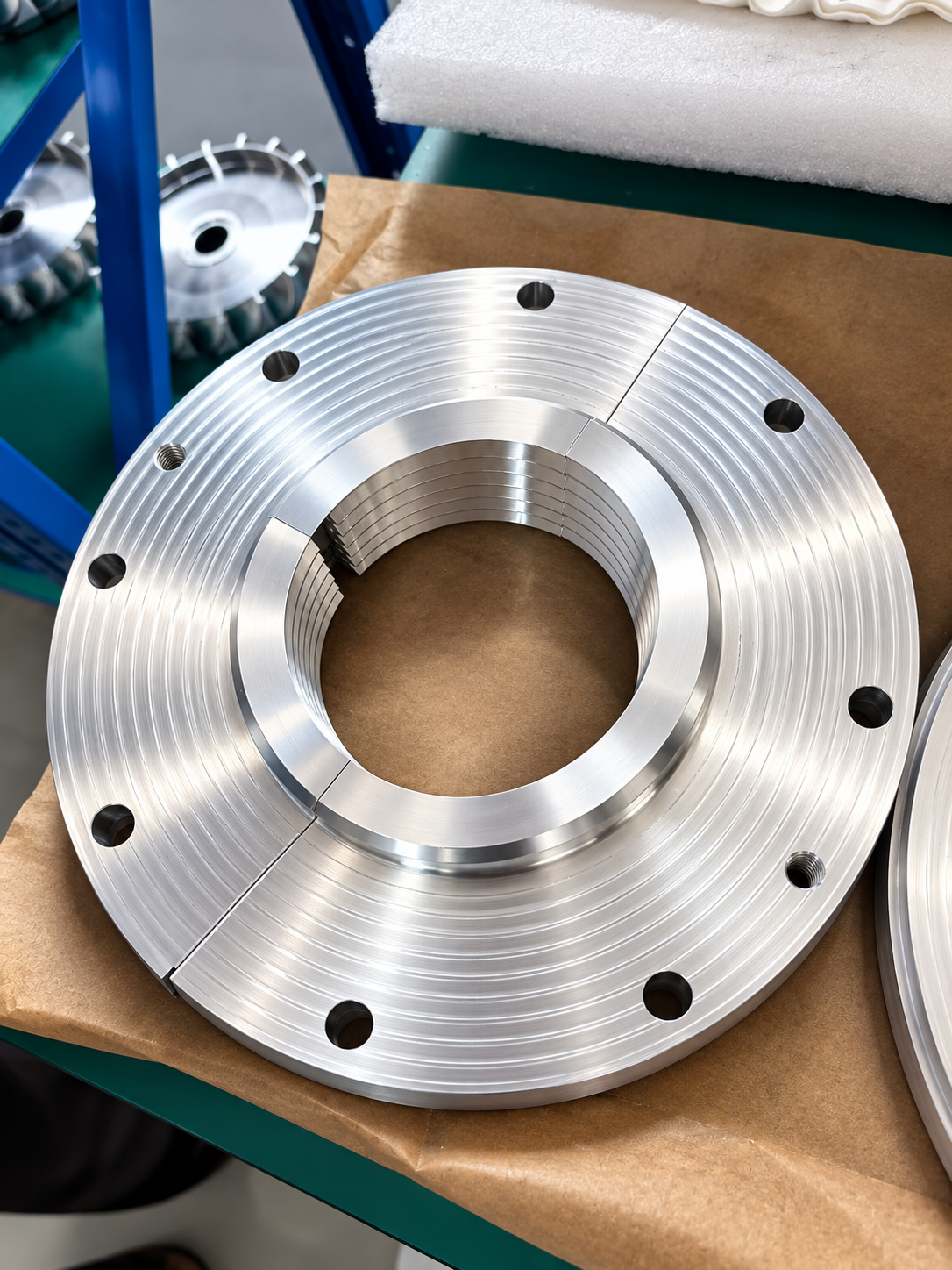

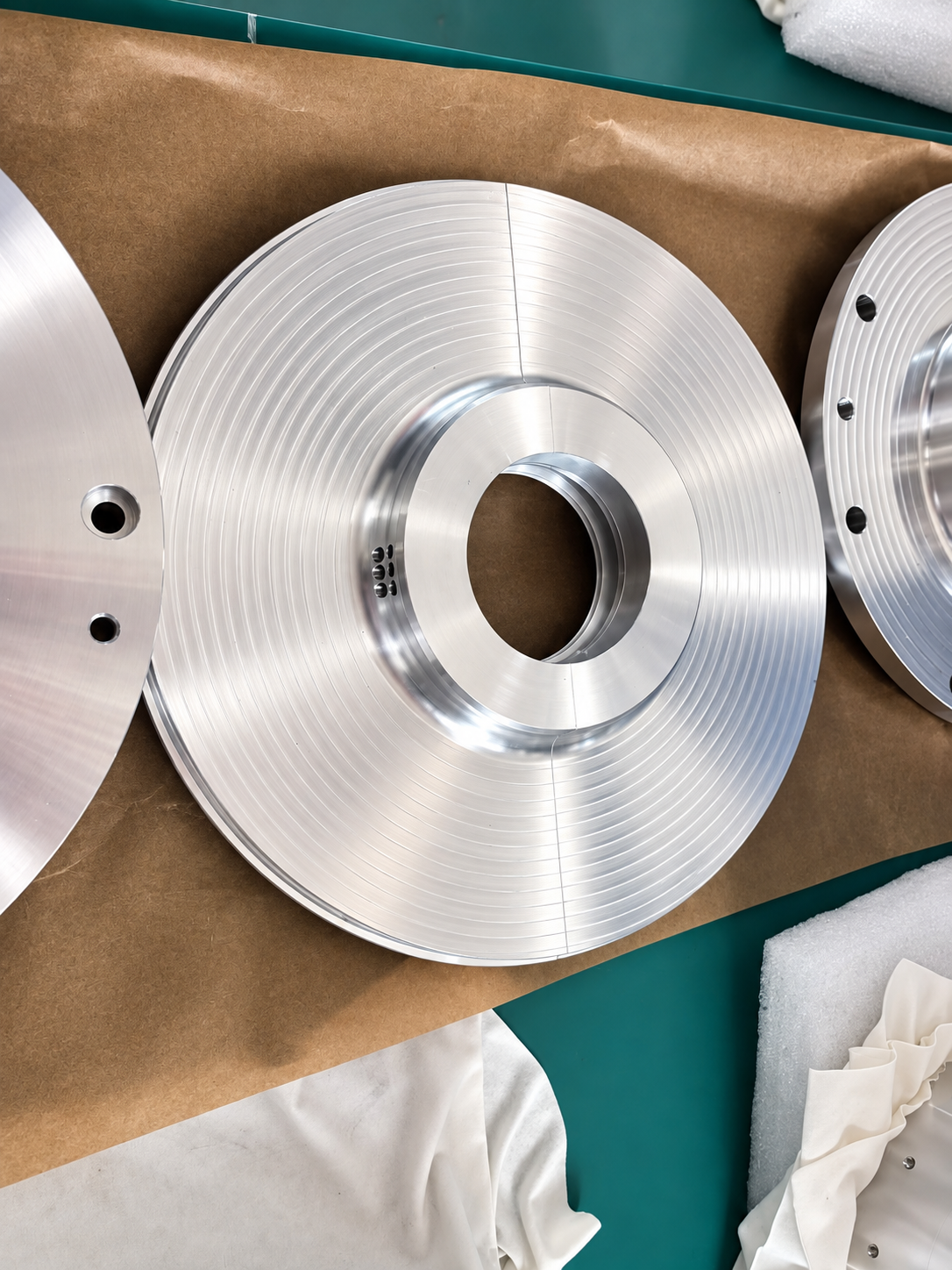

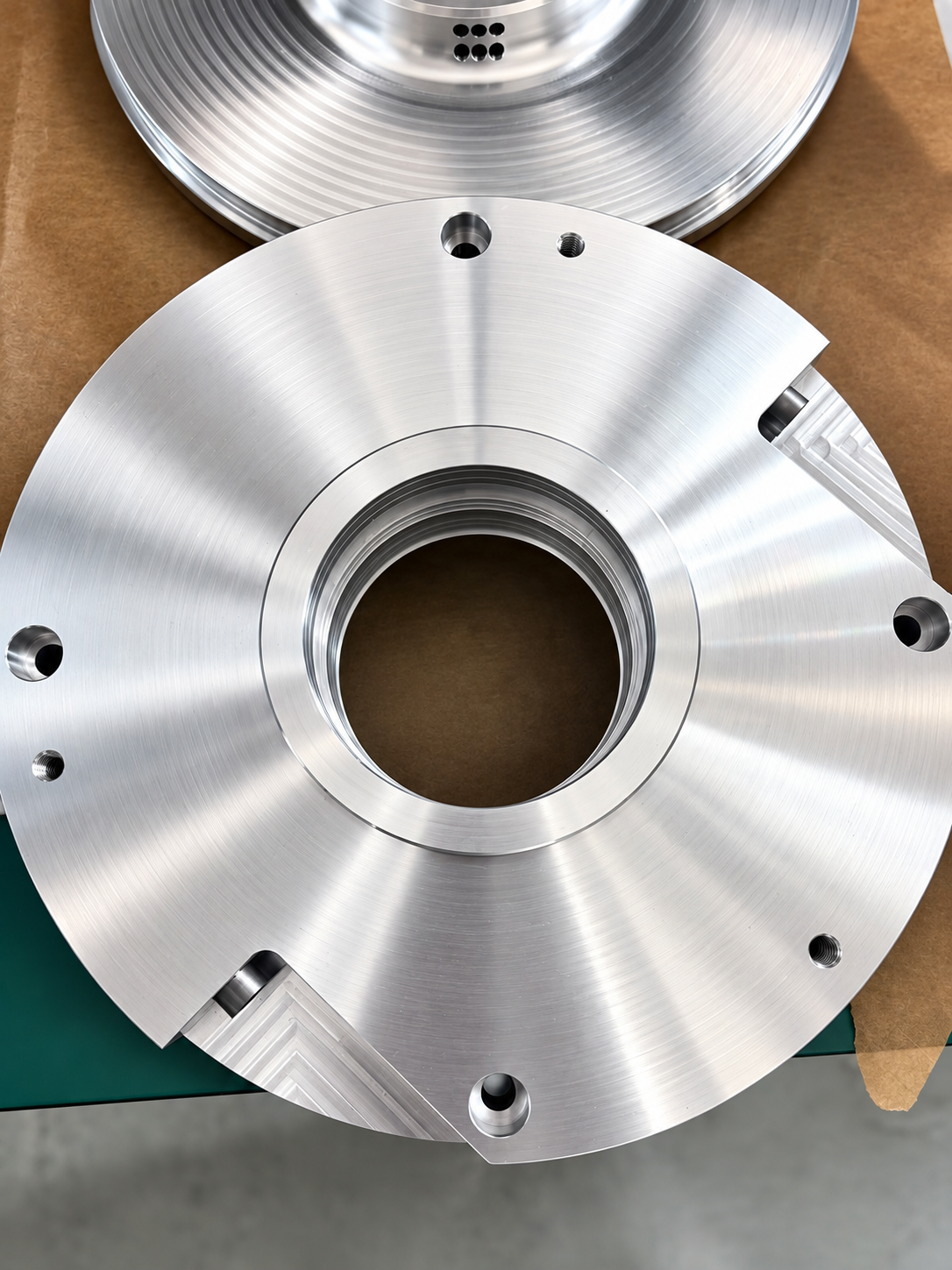

The photographs show split labyrinth seal components manufactured by our partner factory, including the split structure and internal labyrinth grooves. Select an image to view the full-size photograph.
Repair and overhaul support
Replacement & Custom Manufacturing
The manufacturing route is reviewed against the available technical information and the requirements of each replacement project.
Existing Drawings
Available drawings and specifications can provide the technical basis for manufacture. Dimensions, interfaces and project requirements are reviewed before production.
Physical Samples
An existing component can support dimensional measurement and technical review, subject to its condition and the features that remain available for assessment.
Measurement Data
Customer-supplied measurements can be reviewed to define component geometry and identify any additional information required for manufacture.
From available information to a replacement
Technical Workflow
When original drawings are unavailable, a physical sample or suitable measurement data can help establish the technical basis for a replacement component. The required information is determined according to the part and project scope.
Identify the Component
Review the part reference, photographs and available technical records.
Establish the Geometry
Assess the sample or measurement data to define relevant dimensions and interfaces.
Confirm the Requirements
Clarify the manufacturing basis and project-specific technical requirements.
Produce the Replacement
Manufacture the component according to the agreed technical basis.
Split structure and internal grooves
Precision Machining
Split labyrinth seal components require project-specific attention to the split structure, internal labyrinth grooves and mating interfaces. The manufacturing requirements are defined through technical review of the available drawings, sample or measurement data.

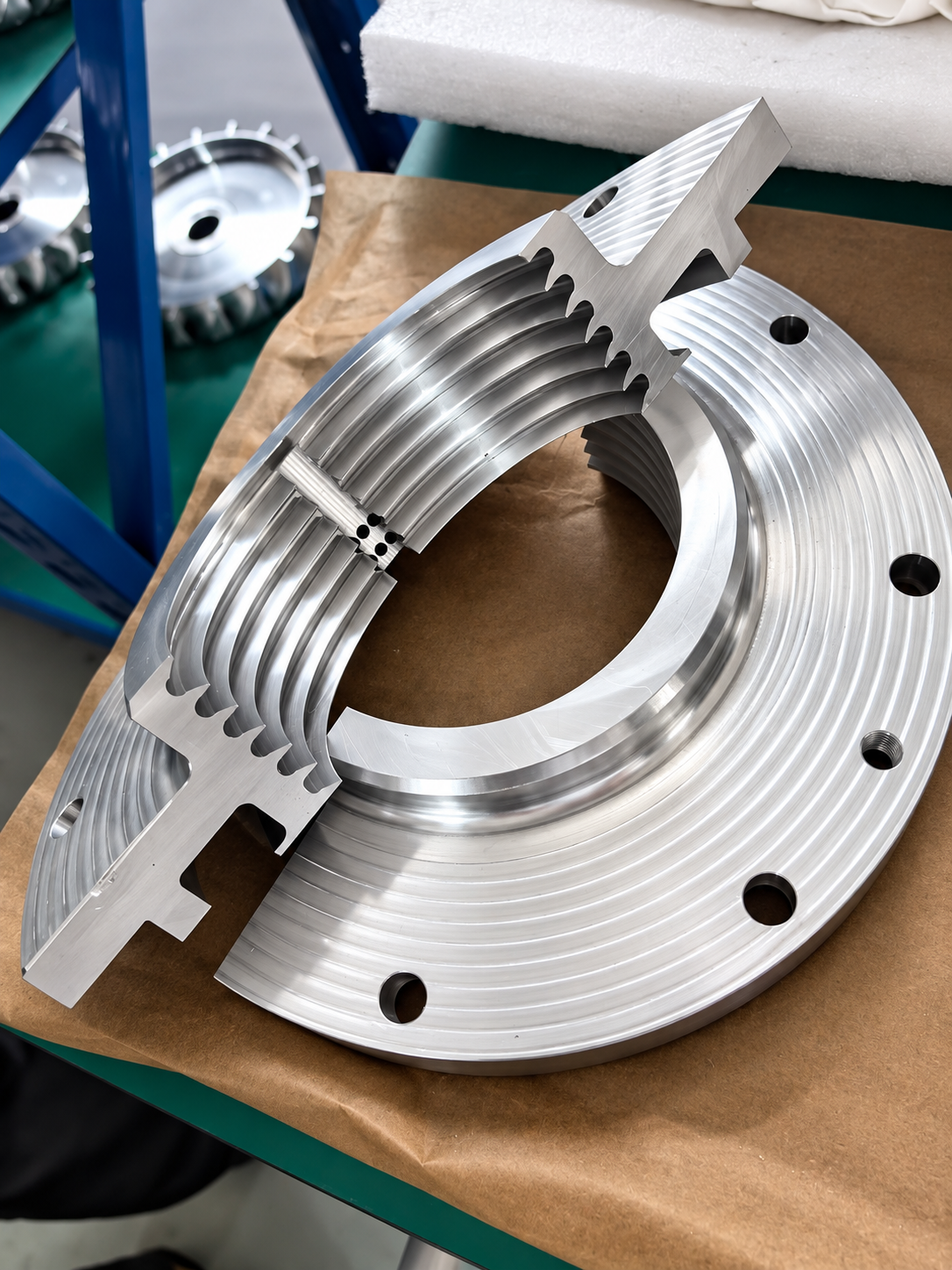

The photograph shows the opened split structure and internal grooves of a component manufactured by our partner factory.
Project-specific verification
Project Inspection Requirements
Inspection scope and acceptance requirements are agreed according to the component and project specifications. The technical review identifies the dimensions, interfaces and documentation relevant to the replacement project.
- Review critical dimensions and mating interfaces.
- Define checks relevant to the split joint and internal groove geometry.
- Confirm inspection and documentation requirements before production.
Start with the information you have
Technical Information for Quotation
Send the available part information for an initial review. The exact information required depends on the component and the proposed manufacturing route.
Part & Project References
- Component name, part number or other identifying reference.
- Compressor manufacturer and model, if available.
- Photographs of the existing component and relevant interfaces.
- Required quantity and the repair or replacement objective.
Available Technical Information
- Drawings or existing technical specifications.
- Physical sample availability and condition.
- Dimensional measurements or measurement data.
- Material, operating and inspection requirements, where known.
Discuss Your Compressor Parts Project
Share your component reference, available photographs and project requirements. We will help clarify the technical information needed for the next step.
Request a Quote
